HF software Define Radio
-

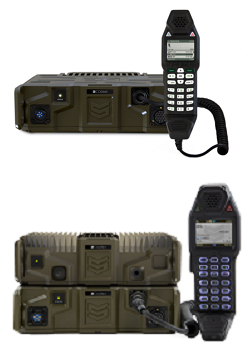

Codan Sentry-H 6120-BM
Codan’s Sentry-H 6120-BM delivers a rugged Software Defined Radio (SDR) solution for military organisations that demand uncompromised, secure long range voice and data communications. With 150W RF power, it has been specifically designed to deliver the smallest and lightest form factor for no-fuss integration into base and mobile platforms. In close consultation with military customers, the 6120-BM has been optimised for ease-of-use and features an ergonomic smart handset with a colour, high-resolution multi-language interface and a variety of other capabilities.
- SDR Future-proof software defined design
- 1.6–30 MHz
- Channels: 1000
- 150 W PEP RF output
- Digital Voice, MELPe, TWELP
- STANAG 4539 (3G ALE)/MIL-STD-188-110A/B data waveforms (up to 19k2 bps)
- AES-256 digital COMSEC/CES 128
- IP connectivity over Ethernet/Wi-Fi and USB
- Digital voice message call
- MIL-STD-188-141B ALE
- MIL-STD-810G compliant
-
Codan Sentry-H 6120-BM
Codan’s Sentry-H 6110-MP delivers a rugged man-portable Software Defined Radio (SDR) solution for military organisations that demand uncompromised, secure voice and data communications, while on the move. The 6110-MP forms an integral part of the Sentry-H product family that meets the demands of the modern battlefield whilst offering full backwards compatibility with legacy products. The 6110-MP is one of the smallest, lightest form factor manpack HF radios available, delivering a powerful 30W RF power and up to 55 hours of battery life in less than 5 kg of weight without compromise on any capabilities.
- Software Defined Radio
- 1.6–30 MHz
- Channels: 1000
- 30W Power output
- Dual handset control
- Lightweight and compact
- Digital Voice, MELPe, TWELP
- STANAG 4539 (3G ALE)/MIL-STD-188-110A/B data waveforms (up to 19k2 bps)
- AES-256 digital COMSEC/CES 128
- Frequency Hopping
- MIL-STD-188-141B ALE
- MIL-STD-810G compliant
- H-250 Connector support to Audio and external encryption devices,
MANET Radio Equipment
-

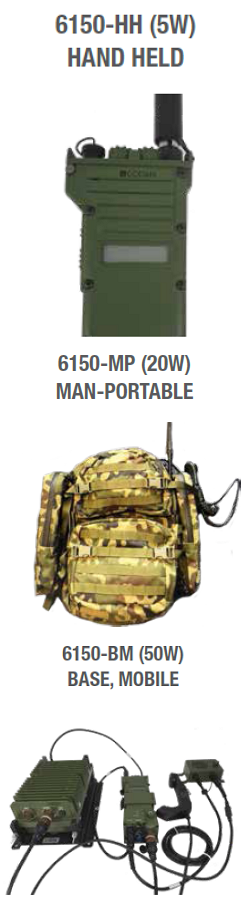

Codan Sentry-V 6150
Codan’s 6150 family military band VHF radio provides a rugged solution for users who require communications with a tactical edge: designed and tested to all the environments faced on the modern day battlefield, offering users the ability to pass critical information across the area of operation in real time. The 6150 family increases operational efficiency and awareness for those in the immediate area and back to command elements.
- 30-88 MHz frequency range
- Digital Voice (MELPe/CVSD)
- Available in hand held, man-portable, vehicular and base configurations
- GPS
- Channels: 2320
- Data transmission rates: 1.2 / 2.4 / 9.6 / 12.0 /19.2 / 24 kbp/s
- Power Supply: 7.2V (12-24V base/man-portable)
- AES-128/256 Encryption
- Frequency hopping
- Dimensions (hand held only) (H x W x D) 212 mm x 91/76 mm x 43 mm
- Weight (hand held with battery) 940 g
- Temperature range: Operational: -32°C to +50°C
- Environmental: MIL STD 810F, NO-58-A213
-
Codan Sentry-V 6150
Codan’s 6150 family military band VHF radio provides a rugged solution for users who require communications with a tactical edge: designed and tested to all the environments faced on the modern day battlefield, offering users the ability to pass critical information across the area of operation in real time. The 6150 family increases operational efficiency and awareness for those in the immediate area and back to command elements.
- 30-88 MHz frequency range
- Digital Voice (MELPe/CVSD)
- Available in hand held, man-portable, vehicular and base configurations
- GPS
- Channels: 2320
- Data transmission rates: 1.2 / 2.4 / 9.6 / 12.0 /19.2 / 24 kbp/s
- Power Supply: 7.2V (12-24V base/man-portable)
- AES-128/256 Encryption
- Frequency hopping
- Dimensions (hand held only) (H x W x D) 212 mm x 91/76 mm x 43 mm
- Weight (hand held with battery) 940 g
- Temperature range: Operational: -32°C to +50°C
- Environmental: MIL STD 810F, NO-58-A213
-

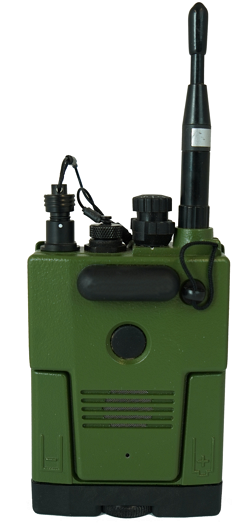

Codan Sentry-U 6150PR
Codan’s Sentry-U 6160-PR (Personal Radio) provides secure Inter and Intra team communications. Designed for action on the forward edge and specialized units who need a robust real time reporting network to conduct vital operations. Technology enhancements within this product over traditional Personal Role Radios (PRR’s) decrease the risk of detection and interception.
- Frequency Range: 2405 to 2480 MHz (unlicensed ISM band)
- Compact and lightweight
- Full-duplex voice/data operation
- Build in GPS
- Wireless PTT operation
- Multiple network and grouping
- Full duplex digital voice communication (conference mode)
- AES-128 Encryption
- Data transmission: up to 125 kb/s
- Radio range in open area: up to 1200m
- Dimensions (without antenna) 115 x 69 x 37mm
- Weight (without battery) 345 g
-

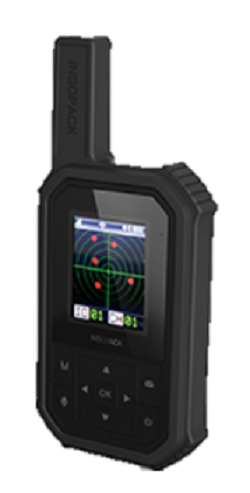

Insopack PRR2
- Full-duplex communication/Hands free radio
- Text messaging with pre-installed messages
- Full-duplex group talk up to 12 radios
- GPS/GIS support to share location data in real time
- AES-256 Encryption
- 3 hops auto-relay
- Up to 4.5 KM (1.5KM per hop)
- 3XX/4XX/5XX MHz (40 channels)
-
Codan Radio Interoperability System
Codan’s RIOS (Radio Interoperability System) is a suite of devices intended to allow radio to radio to IP voice communications, secure from end to end. Encrypted and clear radios from any band (e.g. HF, VHF, UHF, satellite) can be bridged together and broken out onto IP links (e.g. LTE internet, fibre, microwave, Ethernet) to allow ‘software’ users on Windows computers, iOS/Android smartphone apps or VoIP phones to talk directly to radio assets on the ground. RIOS is hardware compatible with any device with a microphone and speaker, meaning GSM or POTS telephone networks can also be easily linked into these same RolP talkgroups. RIOS operates transparently to any encryption standards - communications channels remain ‘red’ between radio devices, are decrypted by the connected radio going into the RIOS, and then re-encrypted again by a different outgoing radio connected to the RIOS.
- Interoperability for all types of communications including radio, smartphone and computers
- Connect to all signaling platforms including HF, VHF, UHF, cellular and satellite phones
- Network to anywhere in the world with Ethernet, satellite or wireless IP highly-efficient network integration
- Common radio configurations pre-set
- RIOS lite smartphone app with control and video function
- 8 Transceiver ports (26 pin high density)
- Ruggedised USB port
- External PTT input
- DC Input: 9 to 36 V DC
- Dimensions: 22.6 cm H, 55.1 cm W, x 35.8 cm D
